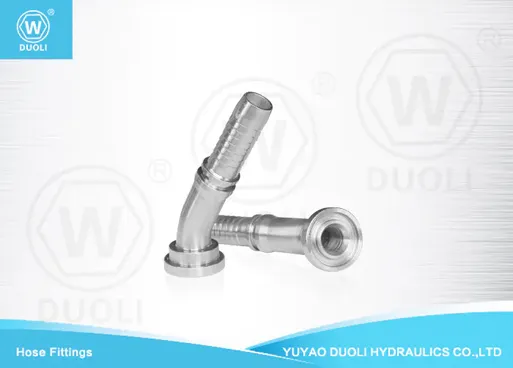

In the realm of hydraulic systems, efficiency and reliability are paramount, and achieving seamless fluid transfer requires impeccable design and engineering. One crucial component in this intricate network is the 30° SAE Flange, engineered to withstand demanding applications with a robust pressure rating of 3000 PSI.
Compliant with ISO12151-3/SAE J516-J518 standards, the 30° SAE Flange is a testament to meticulous engineering and adherence to industry benchmarks. Its design is characterized by a precisely calculated 30-degree angle, enhancing the connection's integrity and reducing stress during operation. This standardized design not only ensures consistent performance but also facilitates interchangeability, streamlining maintenance and replacement processes.
Operating within the 3000 PSI pressure range, this flange is tailored for high-pressure hydraulic systems, where safety and efficiency are non-negotiable. Whether in heavy machinery, industrial equipment, or aerospace applications, the 30° SAE Flange serves as a crucial link, providing a secure and leak-free connection, promoting system longevity and reducing downtime.
Part No. | Thread E | WINNER PART NO. | Description |
63-08-08 (E30°) | 30.2 | 87332-08-08 |
30°SAE FLANGE 3000 PSI CODE 61ISO12151-3/SAE J516-J51 |
63-10-08 (E30°) | 34.0 | 87332-10-08 | |
63-10-10 (E30°) | 34.0 | 87332-10-10 | |
63-12-08 (E30°) | 38.1 | 87332-12-08 | |
63-12-10 (E30°) | 38.1 | 87332-12-10 | |
63-12-12 (E30°) | 38.1 | 87332-12-12 | |
63-16-12 (E30°) | 44.4 | 87332-16-12 | |
63-16-16 (E30°) | 44.4 | 87332-16-16 | |
63-20-16 (E30°) | 50.8 | 87332-20-16 | |
63-20-20 (E30°) | 50.8 | 87332-20-20 | |
63-24-20 (E30°) | 60.3 | 82332-24-20 | |
63-24-24 (E30°) | 60.3 | 87332-24-24 | |
63-32-32 (E30°) | 71.4 | 87332-32-32 |
