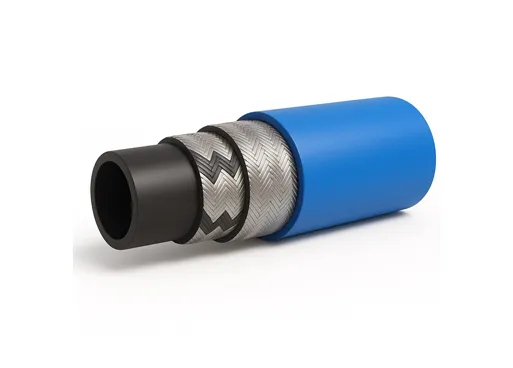

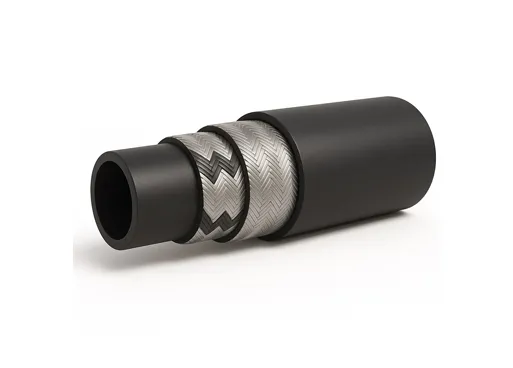

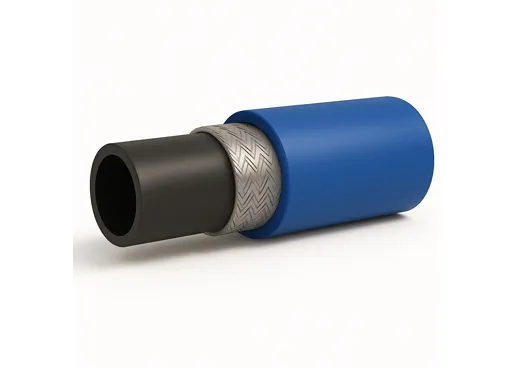

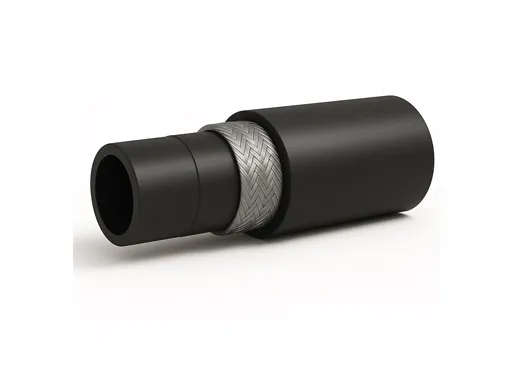

Meet the 5-Series, our comprehensive range of spiral wire reinforced hoses engineered for reliability across a vast spectrum of medium-pressure hydraulic applications. From industrial machinery to mobile equipment, this series combines robust construction with specific performance enhancements—including compact designs, high-temperature resistance, and specialized jacking solutions.
Built to exceed international standards like EN853, EN857, and SAE J517, the 5-Series ensures you find the exact hose for your system's demands, guaranteeing safety, durability, and optimal performance.
Extreme flexible tight bend radius.
Abrasion resistant cover (optional) with 30 times or 300 times stronger abrasion resistant available.
High operating temperature.
Meets and exceeds international standards including EN853, EN857, and SAE J517.
Available in a comprehensive range of sizes from 1/4 inch to 2 inches.
| WP (PSI) | SPECIFICATION | GRENBERT MODEL | ID RANGE | |
| 1175 - 6000 | SAE 100R2AT . EN853 2SN | -40°C to 100°C | 5400 | 1/4" to 2" |
| 2400 - 6000 | EN857 2SC | -40°C to 100°C | 5400C | 1/4" to 1" |
| 1175 - 6000 | SAE 100R2AT . EN853 2SN (HIGH TEMP) | -40°C to 135°C | 5400HT | 1/4" to 2" |
| 600 - 3280 | SAE 100R1T . EN853 1SN | -40°C to 100°C | 5300 | 1/4" to 2" |
| 600 - 3280 | EN857 1SC | -40°C to 100°C | 5300C | 1/4" to 2" |
| 600 - 3280 | SAE 100R1T . EN853 1SN (HIGH TEMP) | -40°C to 135°C | 5300HT | 1/4" to 2" |
| 1500 - 6000 | SAE100 R16 | -40°C to 100°C | 5600 | 1/4" to 2" |
| 3050 | SAE100 R17 | -40°C to 100°C | 5700 | 1/4" to 2" |
| 10000 | HYDRAULIC JACK HOSE | -40°C to 49°C | 5JH | 1/4" and 3/8" |
