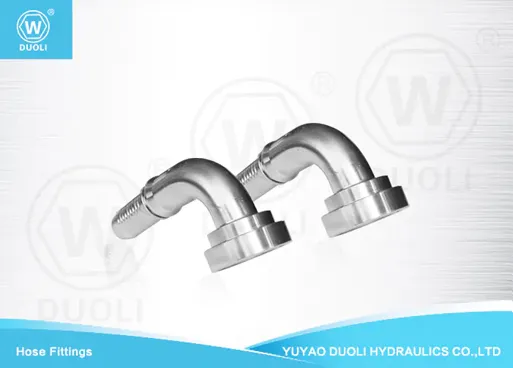

The 90° SAE Flange is rated at an impressive 6000 PSI and conforms to the rigorous standards of CODE 62 ISO12151-3/SAE J516-J518, standing as an advance of hydraulic connection technology. This hydraulic fitting is engineered to meet the demanding needs of high-pressure hydraulic systems, ensuring efficiency, durability, and safety in fluid power applications.
The SAE (Society of Automotive Engineers) 90° Flange design is renowned for its robust construction and precise dimensions, allowing for a reliable and leak-free connection under substantial hydraulic pressures. The 6000 PSI rating emphasizes its capability to handle pressure levels commonly encountered in heavy machinery, industrial processes, and critical hydraulic applications.
Adhering to the ISO12151-3/SAE J516-J518 standards signifies the flange's compatibility and interchangeability, enabling seamless integration with a variety of hydraulic systems. This standardization ensures a universally accepted fitting that simplifies installation and maintenance across different hydraulic setups.
Part No. | Thread E | WINNER PART NO. | Description |
659-08-08 (E90) | 31.7 | 87692-08-08 |
|
659-14-12 (E90) | 41.3 | 87692-12-12 | |
659-18-12 (E90) | 47.6 | 87692-16-12 | |
659-18-16 (E90) | 47.6 | 87692-16-16 | |
659-22-16 (E90) | 54 | 87692-20-16 | |
659-22-20 (E90) | 54 | 87692-20-20 | |
659-26-24 (E90) | 63.5 | 87692-24-24 | |
659-34-32 (E90) | 79.4 | 87692-32-32 |
