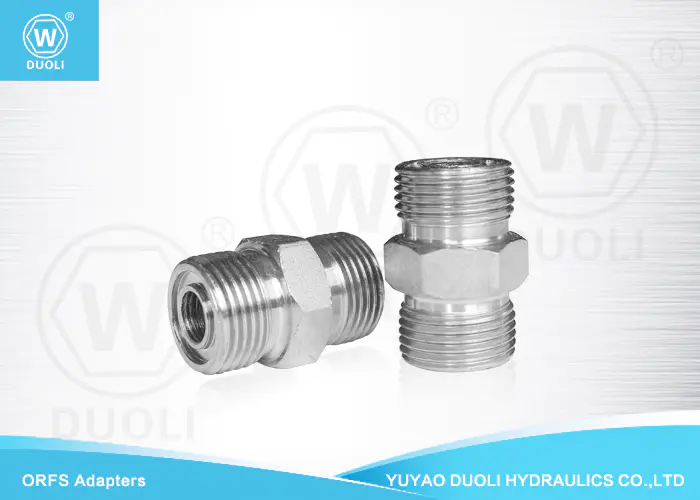

ORFS MALE O-RING

ORFS MALE O-RING

The ORFS Male O-Ring fitting is a crucial component in hydraulic and pneumatic systems, known for its reliability and efficiency in sealing and connecting fluid-carrying lines. ORFS, or O-Ring Face Seal, is a popular and widely used fitting type due to its ability to provide a secure, leak-free connection in high-pressure applications.

At its core, the ORFS Male O-Ring fitting consists of a male-threaded connector that features an integrated O-ring positioned on its face. This design ensures a tight seal between the fitting and the corresponding ORFS female counterpart. The O-ring, typically made of elastomeric materials like Nitrile (Buna-N), Viton, or EPDM, serves as a reliable sealing element, preventing leaks and maintaining system integrity.

The utilization of an ORFS Male O-Ring fitting is fundamental in industries such as aerospace, automotive, manufacturing, and hydraulic machinery. Its advantages lie in its ability to withstand high-pressure environments while accommodating a broad range of fluid types, including oils, hydraulic fluids, water, and gases. Furthermore, its straightforward installation and maintenance contribute to its popularity in various applications, ensuring operational safety and efficiency within fluid handling systems.


  • ORFS MALE O-RING
  • ORFS MALE O-RING

Specification of ORFS MALE O-RING


PART NO.

Thread

WINNER PART NO.

Description

1

2

ADFF-04-04

9/16"×18

9/16"×18

1F-04

ORFS MALE O-RING


ORFS MALE O-RING


ADFF-04-06

9/16"×18

11/16"×16

1F-04-06

ADFF-06-06

11/16"×16

11/16"×16

1F-06

ADFF-06-08

11/16"×16

13/16"×16

1F-06-08

ADFF-06-10

11/16"×16

1"×14

1F-06-10

ADFF-08-08

13/16"×16

13/16"×16

1F-08

ADFF-08-10

13/16"×16

1"×14

1F-08-10

ADFF-08-12

13/16"×16

1.3/16"×12

1F-08-12

ADFF-10-10

1"×14

1"×14

1F-10

ADFF-10-12

1"×14

1.3/16"×12

1F-10-12

ADFF-12-12

1.3/16"×12

1.3/16"×12

1F-12

ADFF-12-16

1.3/16"×12

1.7/16"×12

1F-12-16

ADFF-16-16

1.7/16"×12

1.7/16"×12

1F-16

ADFF-16-20

1.7/16"×12

1.11/16"×12

1F-16-20

ADFF-20-20

1.11/16"×12

1.11/16"×12

1F-20

ADFF-20-24

1.11/16"×12

2"×12

1F-20-24

ADFF-24-24

2"×12

2"×12

1F-24
