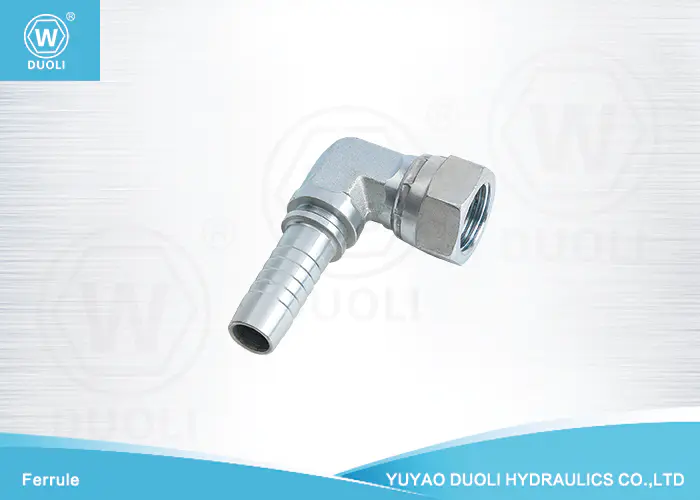

The 90° BSP Compact Female 60° Cone Swivel Nut is a crucial component designed for hydraulic and fluid systems, offering both compactness and efficiency in demanding industrial applications. This fitting incorporates the reliability of the British Standard Pipe (BSP) threading system with the precision of a 60° cone and the convenience of a swivel nut, making it an ideal choice for professionals in various industries.
The 90° angle in this fitting is a valuable feature for efficient hose or pipe routing in confined spaces, allowing for optimized fluid system layouts while reducing kinks and bends that can impede flow.
The swivel nut enables easy alignment with other components and reduces the risk of cross-threading. This feature significantly streamlines the connectivity process, enhancing efficiency and reducing downtime during maintenance or system modifications.
Part No. | Thread E | WINNER | Description |
551-04-04/S (E90°) | G1/4"×19 | 22691K-04-04 |
|
551-06-06/S (E90°) | G3/8"×19 | 22691K-06-06 | |
551-08-08/S (E90°) | G1/2"×14 | 22691K-08-08 | |
551-10-10/S (E90°) | G5/8"×14 | 22691K-10-10 | |
551-12-12/S (E90°) | G3/4"×14 | 22691K-12-12 | |
551-16-16/S (E90°) | G1"×11 | 22691K-16-16 |
