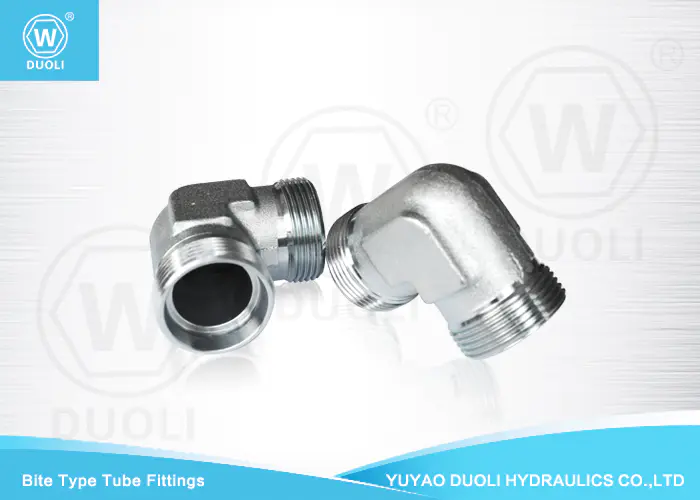

An elbow union is a crucial component in piping and plumbing systems, serving as a vital link in connecting pipes and facilitating fluid or gas flow within a network. Its structure resembles the human elbow, allowing for a smooth transition from one pipe to another at a specific angle, typically 90 or 45 degrees.
In industrial, residential, and commercial applications, elbow unions play a pivotal role in directing the flow of liquids, gases, or other substances. They are made from various materials, such as stainless steel, copper, PVC, and other durable alloys, to ensure they withstand the pressure, temperature, and corrosive elements often encountered within plumbing and industrial systems.
The design and construction of an elbow union are meticulously crafted to meet specific requirements, ensuring performance and longevity. Engineers and plumbers carefully select the appropriate elbow union based on factors such as the material being transported, the pressure of the system, and the available space for the pipe bend.
PART NO. | Thread | WINNER PART NO. | Description | |
1 | 2 | |||
W 06LL | M10×1.0 |
| ||
W 08LL | M12×1.0 | |||
W 10LL | M14×1.0 | |||
W 06L | M12×1.5 | 1C9-12 | ||
W 08L | M14×1.5 | 1C9-14 | ||
W 10L | M16×1.5 | 1C9-16 | ||
W 12L | M18×1.5 | 1C9-18 | ||
W 15L | M22×1.5 | 1C9-22 | ||
W 18L | M26×1.5 | 1C9-26 | ||
W 22L | M30×2.0 | 1C9-30 | ||
W 28L | M36×2.0 | 1C9-36 | ||
W 35L | M45×2.0 | 1C9-45 | ||
W 42L | M52×2.0 | 1C9-52 | ||
W 06S | M14×1.5 | 1D9-14 | ||
W 08S | M16×1.5 | 1D9-16 | ||
W 10S | M18×1.5 | 1D9-18 | ||
W 12S | M20×1.5 | 1D9-20 | ||
W 14S | M22×1.5 | 1D9-22 | ||
W 16S | M24×1.5 | 1D9-24 | ||
W 20S | M30×2.0 | 1D9-30 | ||
W 25S | M36×2.0 | 1D9-36 | ||
W 30S | M42×2.0 | 1D9-42 | ||
W 38S | M52×2.0 | 1D9-52 | ||
Note: The above code includes adapters, if you need a complete set, please add "RN", such as "W-06L/RN".
