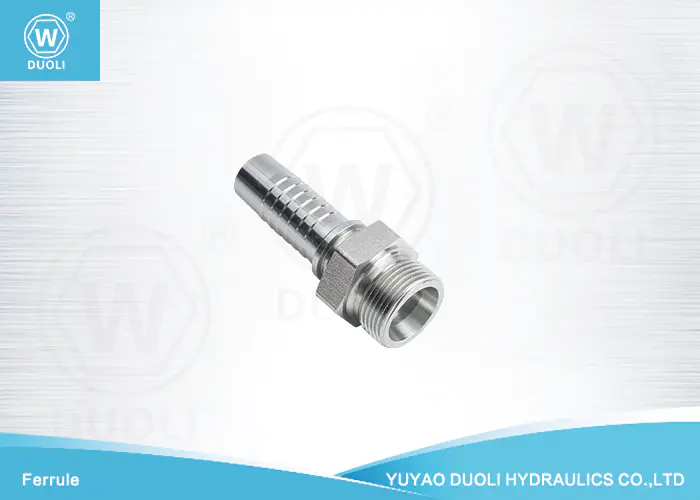

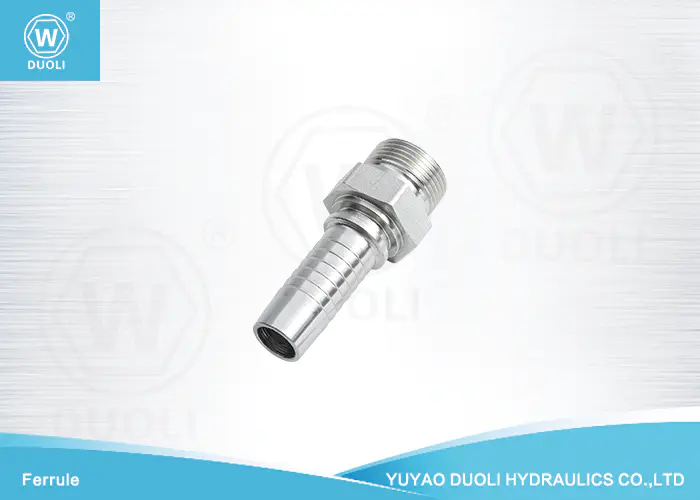

METRIC MALE 24° CONE SEAT H.T. ISO 8434-1-DIN3861

The DIN ISO 8434 standard defines the structural and dimensional requirements for metric 24° cone seat hydraulic fittings used in high-pressure fluid systems. This category, also commonly referred to in engineering documentation as DIN 8434, ensures consistent sealing performance and interchangeability across global hydraulic installations.

The cone sealing structure used in this series belongs to the cone fittings type, which provides reliable metal-to-metal sealing under vibration and pressure fluctuations. In practical hydraulic assemblies, this design is often combined with cone flange configurations to improve connection stability and prevent leakage in demanding working environments.

The METRIC MALE 24° CONE SEAT H.T. ISO 8434-1-DIN3861 fitting is widely used in industrial hydraulic pipelines where DIN and ISO compatibility is required. Systems designed under DIN ISO 8434 standards ensure uniform performance across different manufacturers, while DIN 8434 based geometry guarantees precise cone angle matching for secure sealing.
