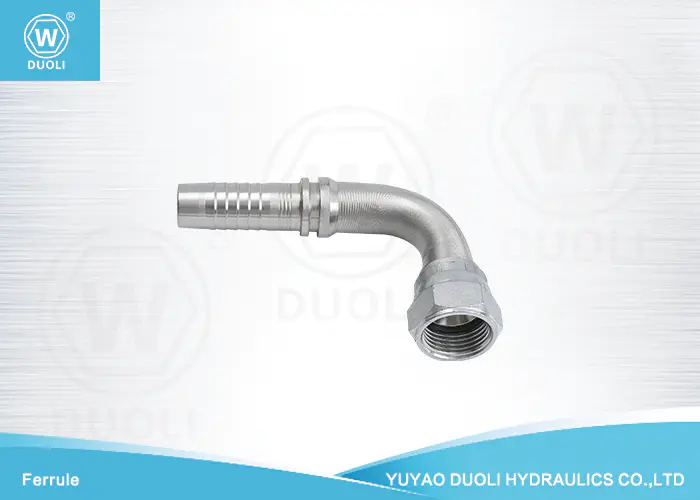

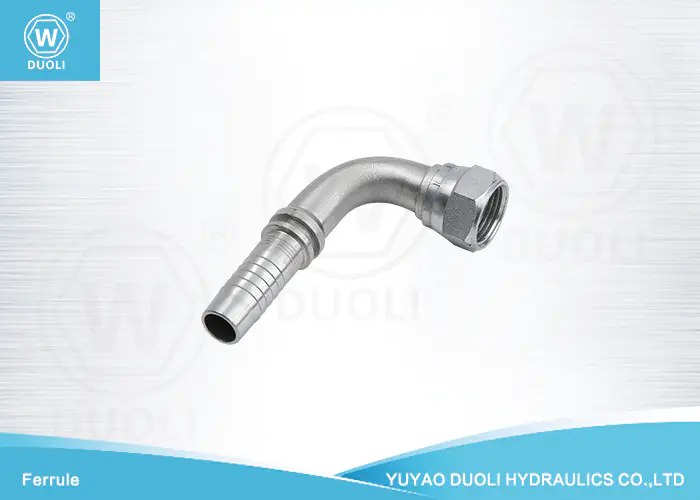

The 90° JIC (Joint Industry Council) Female 37° Cone Seat Fitting adheres to the SAE J514 standard, is a specialized component designed for hydraulic and fluid systems where space constraints and specific angles are critical. This fitting combines the precise 37-degree cone seat design, characteristic of JIC fittings, with a 90-degree angle, offering unique advantages in certain hydraulic applications.
This fitting is compatible with other JIC components, ensuring secure and leak-resistant connections in hydraulic systems.The 37-degree cone seat provides a dependable seal even under high-pressure conditions, making it well-suited for various hydraulic applications.
The 90-degree angle configuration is a key feature of this fitting, making it particularly suitable for installations where hoses or pipes must navigate tight corners or angles. This design reduces the need for complex routing and ensures a smooth, efficient flow of fluids within the system.
Part No. | Thread E | WINNER | Description |
55-07-04 (E90°) | 7/16"×20 | 26791-04-04 |
90°JIC FEMALE 37' CONE SEAT /SAE J514 |
55-08-04 (E90°) | 1/2"×20 | 26791-05-04 | |
55-08-05 (E90°) | 1/2"×20 | 26791-05-05 | |
55-09-04 (E90°) | 9/16"×18 | 26791-06-04 | |
55-09-06 (E90°) | 9/16"×18 | 26791-06-06 | |
55-12-06 (E90°) | 3/4"×16 | 26791-08-06 | |
55-12-08 (E90°) | 3/4"×16 | 26791-08-08 | |
55-14-08 (E90°) | 7/8"×14 | 26791-10-08 | |
55-14-10 (E90°) | 7/8"×14 | 26791-10-10 | |
55-17-08 (E90°) | 1.1/16"×12 | 26791-12-08 | |
55-17-10 (E90°) | 1.1/16"×12 | 26791-12-10 | |
55-17-12 (E90°) | 1.1/16"×12 | 26791-12-12 | |
55-19-12 (E90°) | 1.3/16"×12 | 26791-14-12 | |
55-21-12 (E90°) | 1.5/16"×12 | 26791-16-12 | |
55-21-16 (E90°) | 1.5/16"×12 | 26791-16-16 | |
55-26-16 (E90°) | 1.5/8"×12 | 26791-20-16 | |
55-26-20 (E90°) | 1.5/8"×12 | 26791-20-20 | |
55-30-24 (E90°) | 1.7/8"×12 | 26791-24-24 | |
55-40-32 (E90°) | 2/1/2"×12 | 26791-32-32 |
