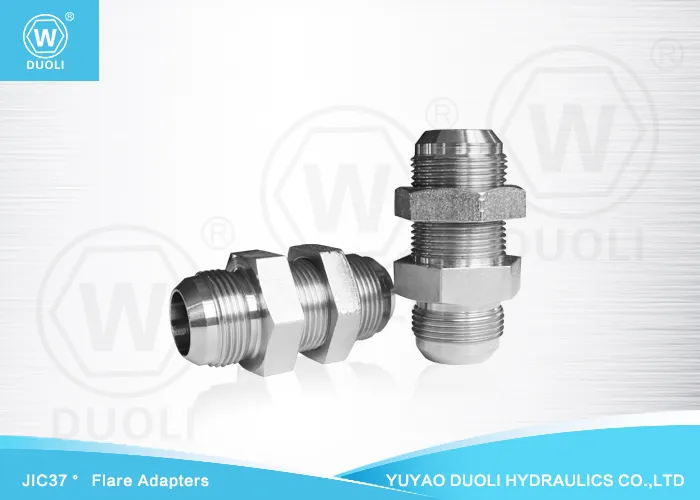

JIC (Joint Industry Council) fittings are a vital component in hydraulic systems, facilitating secure connections and efficient fluid flow. Among these fittings, the JIC Male 37°Cone fitting holds significant prominence due to its unique design and functionality.
The JIC Male 37°Cone fitting is recognized for its reliability and versatility in various applications, particularly in hydraulic systems. Its design ensures a tight and leak-resistant connection, providing stability under high-pressure conditions commonly encountered in hydraulic operations. The cone angle of 37 degrees allows for efficient transmission of hydraulic fluid, reducing turbulence and pressure loss within the system.
Moreover, the JIC Male 37°Cone fitting is compatible with a range of hydraulic hoses and tubes, making it a preferred choice for diverse industries such as manufacturing, agriculture, construction, and transportation. Engineers and hydraulic system designers appreciate its ease of installation and adaptability, contributing to streamlined operations and enhanced system performance.
PART NO. | Thread | WINNER PART NO. | Description | |
1 | 2 | |||
ADGG-07-07 | 7/16"-20 | 7/16"-20 | 1J-04 |
|
ADGG-07-08 | 7/16"-20 | 1/2"-20 | 1J-04-05 | |
ADGG-07-09 | 7/16"-20 | 9/16"-18 | 1J-04-06 | |
ADGG-08-08 | 1/2"-20 | 1/2"-20 | 1J-05 | |
ADGG-08-09 | 1/2"-20 | 9/16"-18 | 1J-05-06 | |
ADGG-09-09 | 9/16"-18 | 9/16"-18 | 1J-06 | |
ADGG-09-12 | 9/16"-18 | 3/4"-16 | 1J-06-08 | |
ADGG-12-12 | 3/4"-16 | 3/4"-16 | 1J-08 | |
ADGG-12-14 | 3/4"-16 | 7/8"-14 | 1J-08-10 | |
ADGG-12-17 | 3/4"-16 | 1.1/16"-12 | 1J-08-12 | |
ADGG-14-14 | 7/8"-14 | 7/8"-14 | 1J-10-10 | |
ADGG-14-17 | 7/8"-14 | 1.1/16"-12 | 1J-10-12 | |
ADGG-17-17 | 1.1/16"-12 | 1.1/16"-12 | 1J-12 | |
ADGG-17-21 | 1.1/16"-12 | 1.5/16"-12 | 1J-12-16 | |
ADGG-21-21 | 1.5/16"-12 | 1.5/16"-12 | 1J-16 | |
ADGG-26-26 | 1.5/8"-12 | 1.5/8"-12 | 1J-20 | |
ADGG-30-30 | 1.7/8"-12 | 1.7/8"-12 | 1J-24 | |
ADGG-40-40 | 2.1/2"-12 | 2.1/2"-12 | 1J-32 | |
